Introduction
In architecture, elevation plays a crucial role in defining the external and internal appearance of a structure. It refers to the design, measurement, and representation of different sides of a building. Understanding the different types of elevations helps architects, engineers, and designers create visually appealing, functional, and structurally sound buildings.
In this article, we will explore the four main types of elevation and their significance in architectural design. If you are looking for expert engineering and architectural solutions, Gemcon Engineering is your go-to firm. Visit Gemcon Engineering for innovative design and construction services.
What is Elevation in Architecture?

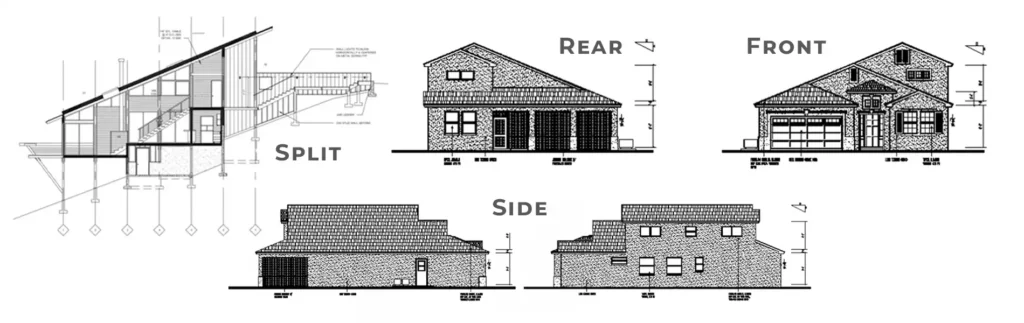

Elevation in architecture refers to the orthographic projection of a building’s exterior or interior surfaces. It represents how a building will look from different viewpoints, helping architects and engineers visualize the final outcome. Elevations are essential for creating detailed plans, understanding proportions, and ensuring compliance with building regulations.
The four main types of elevation are:
- Front Elevation
- Side Elevation
- Rear Elevation
- Interior Elevation
Each of these elevations serves a specific purpose in architectural design, and we will discuss them in detail below.
1. Front Elevation
Definition
The front elevation (also known as the principal elevation) is the view of a building’s facade from the front. It provides a detailed representation of the main entrance, windows, doors, and decorative features.
Importance of Front Elevation
- Defines the first impression of a building.
- Highlights architectural styles and aesthetic appeal.
- Ensures proper placement of doors and windows.
- Helps determine symmetry and balance in design.
Elements of a Front Elevation
- Main entrance
- Windows and doors
- Roofing style
- Decorative elements (columns, balconies, railings, etc.)
- Lighting fixtures and landscaping
Front Elevation in Residential and Commercial Buildings
- In residential homes, the front elevation showcases the porch, garage, and main entryway.
- In commercial buildings, it highlights branding, signage, and glass panels for visibility and aesthetics.
2. Side Elevation
Definition
A side elevation is the architectural drawing of a building from a lateral viewpoint. It shows the depth, side windows, roof slopes, and structural elements that are not visible in the front elevation.
Importance of Side Elevation
- Helps in understanding the side structure and dimensions.
- Assists in window placement for ventilation and natural light.
- Provides insight into roof design, overhangs, and extensions.
Elements of a Side Elevation
- Side walls and windows
- Roof extensions and slopes
- Side doors or garage entries
- Chimneys or external fixtures
Practical Use of Side Elevation
- In houses, side elevations help in deciding where additional windows or entrances can be placed.
- In commercial buildings, they show the height, accessibility points, and emergency exits.
3. Rear Elevation
Definition
The rear elevation represents the back view of a building. While often overlooked, it plays an important role in functionality and outdoor living spaces.
Importance of Rear Elevation
- Provides a detailed view of the backyard and rear structure.
- Helps in designing patios, decks, gardens, and outdoor seating areas.
- Includes emergency exits, service areas, and maintenance zones.
Elements of a Rear Elevation
- Backdoors and windows
- Garden and patio layouts
- External staircases or fire exits
- Utility spaces (e.g., storage sheds, HVAC units)
Rear Elevation in Different Properties
- In residential homes, rear elevations focus on backyard aesthetics and outdoor living spaces.
- In industrial or commercial buildings, they include loading docks, service entrances, and security features.
4. Interior Elevation
Definition
An interior elevation shows the inside of a building. It provides details of walls, doors, windows, furniture, and decorative features from an internal perspective.
Importance of Interior Elevation
- Helps in interior layout planning and design.
- Assists in custom furniture placement and wall décor alignment.
- Essential for determining ceiling heights, lighting placements, and material selection.
Elements of an Interior Elevation
- Wall designs and finishes
- Built-in shelves and cabinets
- Doors, windows, and room dividers
- Ceiling treatments and lighting fixtures
Use of Interior Elevation in Architecture
- In residential buildings, it aids in the design of living rooms, kitchens, and bedrooms.
- In commercial spaces, it is crucial for retail store layouts, office interiors, and hotel rooms.
How to Read Elevation Drawings?
Elevation drawings use lines, symbols, and measurements to convey architectural details. Here’s how to interpret them:
- Identify the scale – It determines how the drawing relates to the actual structure.
- Check the orientation – Front, side, rear, or interior.
- Understand the symbols – Windows, doors, materials, and fixtures are represented through standardized symbols.
- Look for height and dimension details – Important for construction accuracy.
Why Choose Gemcon Engineering for Your Architectural Needs?
At Gemcon Engineering, we specialize in high-quality architectural and engineering solutions tailored to your needs. Our expertise includes:
- Architectural Design & Planning
- Structural Engineering
- Interior & Exterior Elevation Designs
- Construction & Project Management
Whether you need elevation designs for a residential, commercial, or industrial project, our experts provide customized solutions with precision and creativity.
🔗 Visit Us: Gemcon Engineering
Conclusion
Understanding the four types of elevation—front, side, rear, and interior—is essential for creating well-designed buildings. Each type serves a specific purpose in aesthetics, functionality, and structural integrity. Whether you are constructing a new building or renovating an existing one, paying attention to elevation details will enhance the final outcome.
